Large Capacity Potato Chips Production Line 400 kg/h Potato Sticks / French Fries

Large Capacity Potato Chips Production Line 400 kg/h Potato Sticks / French Fries
Large Capacity Potato Chips Production Line 400 kg/h Potato Sticks / French Fries Large Capacity Potato Chips Production Line 400 kg/h Potato Sticks / French Fries

Large Image :  Large Capacity Potato Chips Production Line 400 kg/h Potato Sticks / French Fries

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: 150KG/H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: exporting wooden case
Delivery Time: 25-30 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 sets per month
Detailed Product Description
Name: Potato Chips Production Machine Potato Chips Capacity: 400kg/h
Machine 1: Elevator Machne 2: Washing And Peeling
Machine 3: Picking Line Warranty: 12 Months
Consist Of: Stainless Steel Characteristic: Easy Operate, High Efficiency
High Light:

french fries production line

,

potato french fries making machine

 Large capacity 400kg/h fully automatic potato chips production line, french fries production line

Description


The line is specially designed for production of Potato chips of different qualities - Potato sticks, French Fries, Potato crisps, and other similar like Cassava chips, Banana chips.

1) Process:

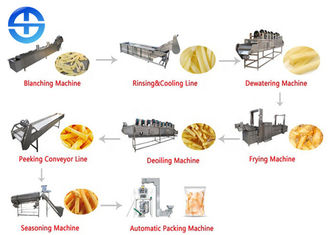

washing and peeling machine-cutting machine-washing machine-blanching machine-frying machine-quick freezing-packing machine
Raw material→conveyor→washing and peeling→picking line→conveyor →cutting →rinsing →blanching →vibrating de-water equipment→drying→frying→vibrating de-oil equipment→cooling line→conveyor→quick freezer→packing



2) Output capacity


Automatic line: 100kg/h, 150kg/h, 260kg/h, 400kg/h.

China full automatic new design frozen french fries production line making machinery for frozen potato fries



Features:

1. Excellent potato chips quality with bright colour.
2. Proven technology for easy and safe operation.
3. The frying machine adopts oil-water mixing or automatic oil filter technology, so the sediment can be cleaned easily.
4. Less oil residue for the potato chips.
5. Professional personnel give full-course guidance and installation, we also provide free training for operators.
6. The exclusively researched formula for making crispy potato chips will be provide for customers at free of charge.




Specifications



Product Name Power(Kw/Hz) Dimensions(mm)
Elevator 0.55kw/380v/50Hz 1500*800*1600
Washing and Peeling machine 4.37Kw/380v/50Hz 3100*900*1500
Picking machine 0.75Kw/380v/50Hz 3500*800*900
Cutting machine 1.1Kw/380v/50Hz 950*800*950
Elevator 0.55Kw/380v/50Hz 1500*800*1500
Impurities removing machine 1.1Kw/380v/50Hz 2400*1000*1300
Washing machine 2.95Kw/380v/50Hz 3500*1200*1300
Blanching machine 60Kw/380v/50Hz 4000*1200*1400
Vibrating dehydrator machine 0.5Kw/3.80v/50Hz 1800*1000*900
Air dryer 6.5Kw/380v/50Hz 4000*1200*1400
Elevator 0.75Kw/380v/50Hz 1500*800*1300
Electrical heating frying machine 80Kw/380v/50Hz 5000*1200*2400
Vibrating de-oiling machine 0.5Kw/380v/50Hz 1500*1000*1300
Air dryer 6.5Kw/380v/50Hz 4000*1200*1600
Elevator 0.75Kw/380v/50Hz 2000*800*2200
Quick freezing machine 100Kw/380v/50Hz 6000*3300*3000
Automatic packing machine 6Kw/380v/50Hz 2000*3000*260



Large Capacity Potato Chips Production Line 400 kg/h Potato Sticks / French Fries 0Large Capacity Potato Chips Production Line 400 kg/h Potato Sticks / French Fries 1

Large Capacity Potato Chips Production Line 400 kg/h Potato Sticks / French Fries 2Large Capacity Potato Chips Production Line 400 kg/h Potato Sticks / French Fries 3
