Easy Operate Potato Chips Production Line 400 Kg/H Output For French Fries

Easy Operate Potato Chips Production Line 400 Kg/H Output For French Fries
Easy Operate Potato Chips Production Line 400 Kg/H Output For French Fries Easy Operate Potato Chips Production Line 400 Kg/H Output For French Fries

Large Image :  Easy Operate Potato Chips Production Line 400 Kg/H Output For French Fries

Product Details:

Place of Origin: China
Brand Name: TMS
Certification: CO, ISO
Model Number: 150KG/H

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: exporting wooden case
Delivery Time: 25-30 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50 sets per month
Detailed Product Description
Name: Fully Automatic Potato Chips Production Line Potato Chips Output: 400kg/h
Application: Making Potato Chips, French Fries Machne 2: Washing And Peeling
Machine 3: Picking Line Warranty: 12 Months
Be Made Of: Stainless Steel Characteristic: Easy Operate, High Efficiency
High Light:

french fries production line

,

electric fryer machine

High efficiency automatic potato chips making machine price, potato chips production line

Description


The line is specially designed for production of Potato chips of different qualities - Potato sticks, French Fries, Potato crisps, and other similar like Cassava chips, Banana chips.

1) Process:


washing and peeling machine-cutting machine-washing machine-blanching machine-frying machine-quick freezing-packing machine
Raw material→conveyor→washing and peeling→picking line→conveyor →cutting →rinsing →blanching →vibrating de-water equipment→drying→frying→vibrating de-oil equipment→cooling line→conveyor→quick freezer→packing



2) Output capacity


Automatic line: 100kg/h, 150kg/h, 260kg/h, 400kg/h.

China full automatic new design frozen french fries production line making machinery for frozen potato fries



Specifications



Product Name Power(Kw/Hz) Dimensions(mm)
Hosting machine 0.55kw/380v/50Hz 1500*800*1600
Washing and Peeling machine 4.37Kw/380v/50Hz 3100*900*1500
Picking machine 0.75Kw/380v/50Hz 3500*800*900
Cutting machine 1.1Kw/380v/50Hz 950*800*950
Elevator 0.55Kw/380v/50Hz 1500*800*1500
Impurities removing machine 1.1Kw/380v/50Hz 2400*1000*1300
Washing machine 2.95Kw/380v/50Hz 3500*1200*1300
Blanching machine 60Kw/380v/50Hz 4000*1200*1400
Vibrating dehydrator machine 0.5Kw/3.80v/50Hz 1800*1000*900
Air dryer 6.5Kw/380v/50Hz 4000*1200*1400
Elevator 0.75Kw/380v/50Hz 1500*800*1300
Electrical heating frying machine 80Kw/380v/50Hz 5000*1200*2400
Vibrating de-oiling machine 0.5Kw/380v/50Hz 1500*1000*1300
Air dryer 6.5Kw/380v/50Hz 4000*1200*1600
Elevator 0.75Kw/380v/50Hz 2000*800*2200
Quick freezing machine 100Kw/380v/50Hz 6000*3300*3000
Automatic packing machine 6Kw/380v/50Hz 2000*3000*260

1. Spiral cleaning peeling machine

Spiral cleaning (peeling) machine mainly by the motor, transmission, hair roller, etc., using brush principle, widely used in round, oval fruit and vegetable cleaning, peeling. The use of spiral vane propulsion, water operation, automatic continuous cleaning and peeled, can be used with production lines.

2. Potato chips fries machine

It is easy to operate and has high output. It can be sliced, cut, cut, thickness, thickness can be adjusted freely, and the finished product is smooth and uniform without breaking. Apply to: potatoes, sweet potatoes, taro, radish, carrots, mustard, eggplant and other root vegetables.

3. Rinse line

Equipment with a bubble device, the material was tumbling state, effectively remove the material surface of starch and impurities, floating objects overflow from the overflow tank, sediment discharge from the sewage outfall, in order to achieve the purpose of cleaning. Have a thorough cleaning, energy, water, equipment, stable and reliable.

4. Drift line

Stainless steel mesh with automatic transmission, easy operation, high efficiency. Heating part, automatic temperature control, free to set, heat can be used gas heating, electric heating, and so on. Color protection while food additives may be added to ensure that potato chips bright colors, crisp taste, body of stainless steel, to achieve food hygiene.

5. Cooling line

Potato chips after the blanching will have a certain amount of heat, and there will be adhesion of the situation, the use of bubbles up and down rolling hand rub repeated, you can quickly put potato chips on the surface temperature down, effectively prevent the material blanching is excessive, and the material fully broken up, in favor of uniformity when fried, and finally processed through a mesh belt conveyor to continue into the next process.

6. Drying dehydration machine

Potato chips mesh belt conveyor through repeated flip chips multi- surface wind and by the uniformity of the wind, the wind through the high-pressure turbine and the cooling surface of the water to dry food, rampant knife-like nozzle, effectively improved the Air pressure, so that the moisture content of potato chips in a short time blown away or evaporate, effectively prevent the oil when the oil phenomenon and shorten the frying time.

7. Fried wire

Frying line machine for stainless steel, durable, free control of temperature. The use of electric heating, coal heating, gas heating in three ways, the thermal efficiency of 95% or more, save energy, equipped with automatic oil filter deslagging, oil, no carbonization, oil will not black, long life cycle, Film bright color, good taste, improve product quality.

8. Cooling oil line

Fried potato chips transported by the network through the fan and the rapid cooling of high-pressure wind and surface oil blown away, the wind into a knife blade-like wind, effectively increasing the air pressure, so that the material potato chips in a short period of time blown away , the device is equipped with oil pan, the oil can be blown off by the oil pan is collected and reused, saving oil is not greasy potato chips while allowing better taste, convenience store.

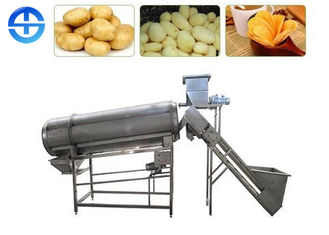

9. Seasoning line

Equipped with a hoisting device above the hopper, sprinkle evenly and continuously spread to the drum, the rotation of potato chips for seasoning spices, the material at the mouth of a slip network, the remaining seasoning can be collected and re-used, not only mixed Uniform material and ensure the integrity of potato chips, convenient and practical.

10. Hoisting machine

1)For the lifting and transport of materials, artificial materials can easily fall into the hopper through the conveyor belt continuous, uniform material will be raised to the next process, save a lot of labor, convenient and practical.

2)After picking the material through this device can be continuously upgraded to a uniform cutting equipment, eliminating the need for a lot of labor, increase production.

11. Pick line

1)The use of belt drive transmission to the next step, while picking at defective or incomplete peeled material, picking convenient, time-saving and continuous operation.

2)Through the belt drive transmission, pick up incomplete or incomplete fried potato chips, picking convenient, time-saving and can be continuous operation.



Easy Operate Potato Chips Production Line 400 Kg/H Output For French Fries 0Easy Operate Potato Chips Production Line 400 Kg/H Output For French Fries 1
