Model: | Fully Automatic | Capacity: | 180kg/h |
---|---|---|---|
Machine 2: | Potato Cutting Machine | Machne 3: | Blanching Machine |
Machine 4: | Dewatering Machine | Warranty: | 12 Months |
Material: | Stainless Steel | Feature: | Durable And Healthy |
High Light: | french fries production line,electric fryer machine |

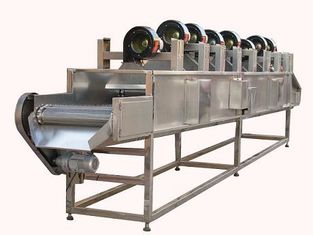

180KG/H Popular Potato Chips Production Line / Frozen French Fries Potato Chips Making Machines
The processing flow potato chips production line
Potatoes → Washing → Peeling → selecting→ cutting → Washing → Blanching → De-watering → Frying → De-oiling → Picking→Freezing→ Packaging
Our Potato Chips Production Line uses fresh potatoes as the raw material. It can produce crisp and high quality potato chips. We design these potato chips machines with latest and the most advanced technology. potato chips production line
►Raw material
The raw material can be fresh potatoes, also can be some other root vegetables, such as sweet potatoes, purple sweet potato,taro,cassava etc.
►Features
1. The main parts of whole production line of potato chip machine is made of stainless steel, which is healthy for people; |
2. The stainless steel is easy to clean and durable; |
3. The potato chips is one most of the popular snacks, low investment can make big profit, so the potato chip machine is your best business partner; |
4. No pollution: potato chip machine adopts the water and oil mixed principle to fry the chips, so there's no smoke or lampblack produced in the working; |
5. The temperature, frying time and deoiling time are controlled by the computer; |
6. Automatic deischarging system can reduce the labor intensity of the workers and improve the product quality. |
►Technical Parameter
Potato chips production line/Frozen potato chips making line (180kg/h as output) |
||
Product name | Power/volts | Machine size |
1. Elevator | 0.55kw/380v/50Hz | 3350*720*2250mm |
2. Washing and peeling machine | 2.75kw/380v/50Hz | 2800*830*1550mm |
3. Picking line | 0.55kw/380v/50Hz | 3900*730*1100mm |
4. Elevator | 0.55kw/380v/50Hz | 1600*700*1600mm |
5. Potato slicing machine | 1.5kw/380v/50Hz | 745*590*900mm |
6. Washing line | 1.87kw/380v/50Hz |
2000*1030*1350mm
|
7. Blanching line | 54.55kw/380v/50Hz |
3000*1130*1400mm
|
8. Dewatering line | 6.75kw/380v/50Hz |
3500*950*1880mm
|
9. Electric heating frying line | 57.37kw/380v/50hz | 4200*1080*1380mm |
10. Deoiling machine | 18.75kw/380v/50Hz |
3500*1000*2250mm
|
11. Picking line | 0.55kw/380v/50Hz |
3000*800*1130mm
|
12. Instant freezer | 22kw/380v | 2200*2300*2240mm |
13. Packaging machine | 6kw/380v/50Hz |
